ArleeDesign's showcase of 3D and 2D models and presentations for in-house use or for external clients. See below for a short description and click on the right thumbnails for a larger version. For the 3D worlds use your mouse to drag/rotate the model.
WebGL 3D Scenes:
ARL41Cruiser
- a 41' sailing monohull.A 3D model of ARL41Cruiser, a 41' simple and honest monohull. A fairly complex model of a sailing boat created in less than 2.0Mb (download). Tested in Firefox ver. 43.0.4, Chrome ver. 47.0.2526.111 m. Three.js (WebGL) world date 22.12.12 - R.002. Model built in Rhino3D, Blender.
ARL-KSS-Danube14
- a river catamaran.A 3D model of ARL-HB80 HouseBoat, a luxurious (without being ostentatious) houseboat for two couples or a couple with children. Tested with Firefox ver.18.0.2 and Chrome ver.24.0.1312.57. Created 14.02.2013 (R.001). Model built in Rhino3D, Blender.
3D Modelling:

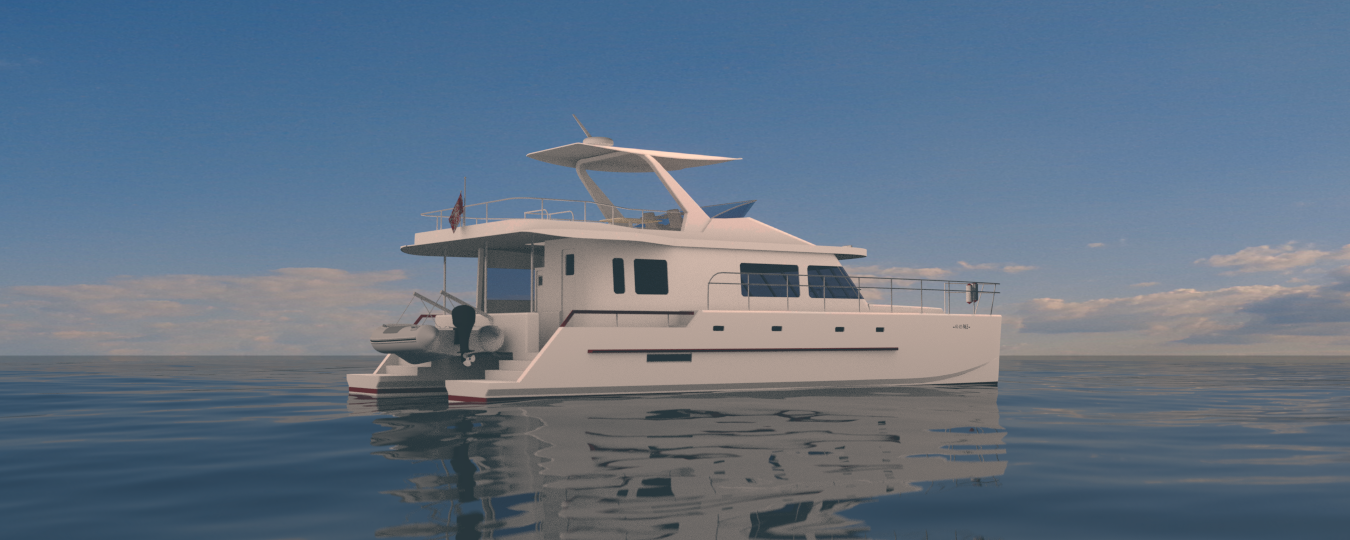

ARL-KSS-P465 Power Catamaran
- a custom made, liveaboard 46' power catamaran.ARL-KSS-P465 is a Composite Construction (PVC foam and GRP skins) ISO B "offshore" category equivalent. Model built in Rhino3D, rendered in Blender.
ARL-PN20.1
- a pontoon.A 3D model of 20' custom designed pontoon ARL-PN20.1. Model built in Rhino3D, rendered in Flamingo.

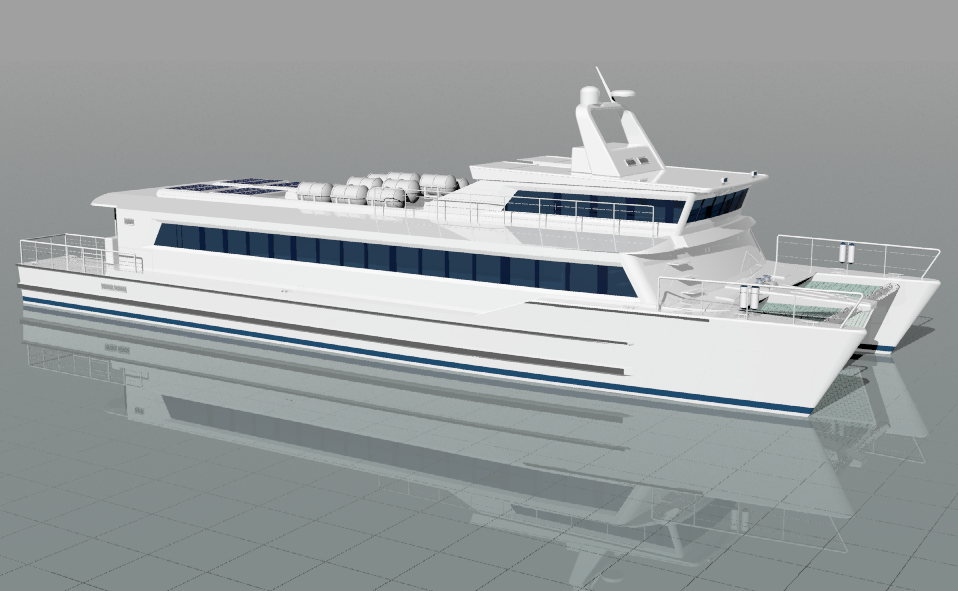

KSS-F85.1
- a 85' Ferry.A 3D model of 85' ferry KSS-F85.1 for 145 passengers designed for Kelsall Catamarans, in-buid in the Philippines. Model built in Rhino3D, rendered in Flamingo.
KSS-ILand26
- a 26' folding trailerable catamaran designed for Kelsall Catamarans.A 3D model of composite 26' folding trailerable catamaran designed for Kelsall Catamarans. Model built in Rhino3D, rendered in Flamingo.

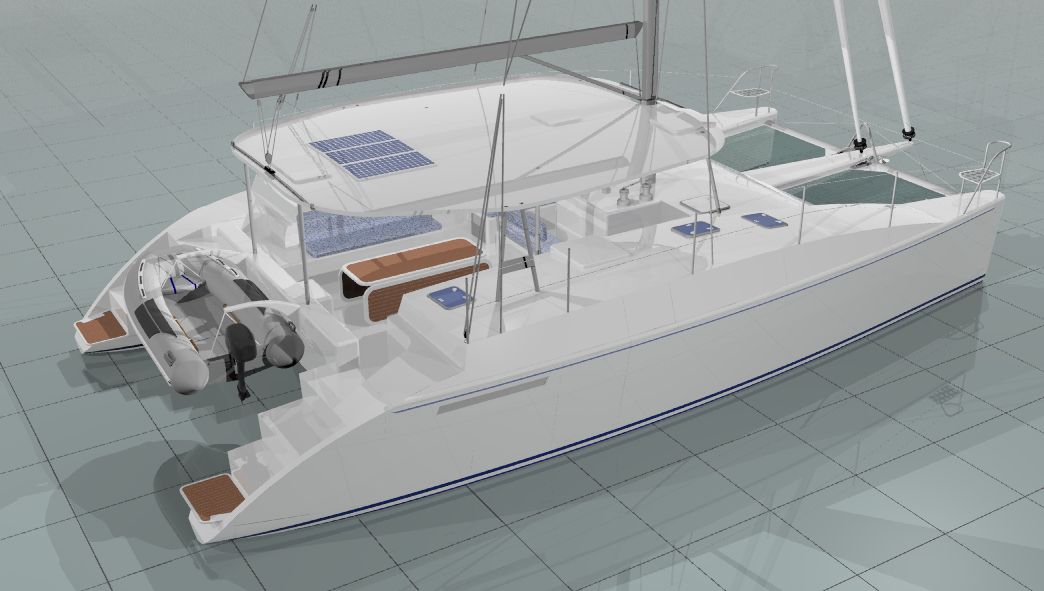

KSS-LM39
- a 39' sailing catamaran designed for Kelsall Catamarans.A 3D model of composite 39' sailing catamaran designed for Kelsall Catamarans. Model built in Rhino3D, rendered in Flamingo.
Other Projects:
Interior details for KSS-70 Catamaran
- a custom made, 70' sailing catamaran.Interior details for a luxury KSS-70 Catamaran desgned for Kelsall Catamarans Ltd. Model built in Rhino3D, rendered in Flamingo.
Housing complex in Judea Tauranga
- a 3D model of a Housing complex.A 3D presentation for a housing complex in Judea Tauranga. Model built in ArchiCAD, rendered in Flamingo.

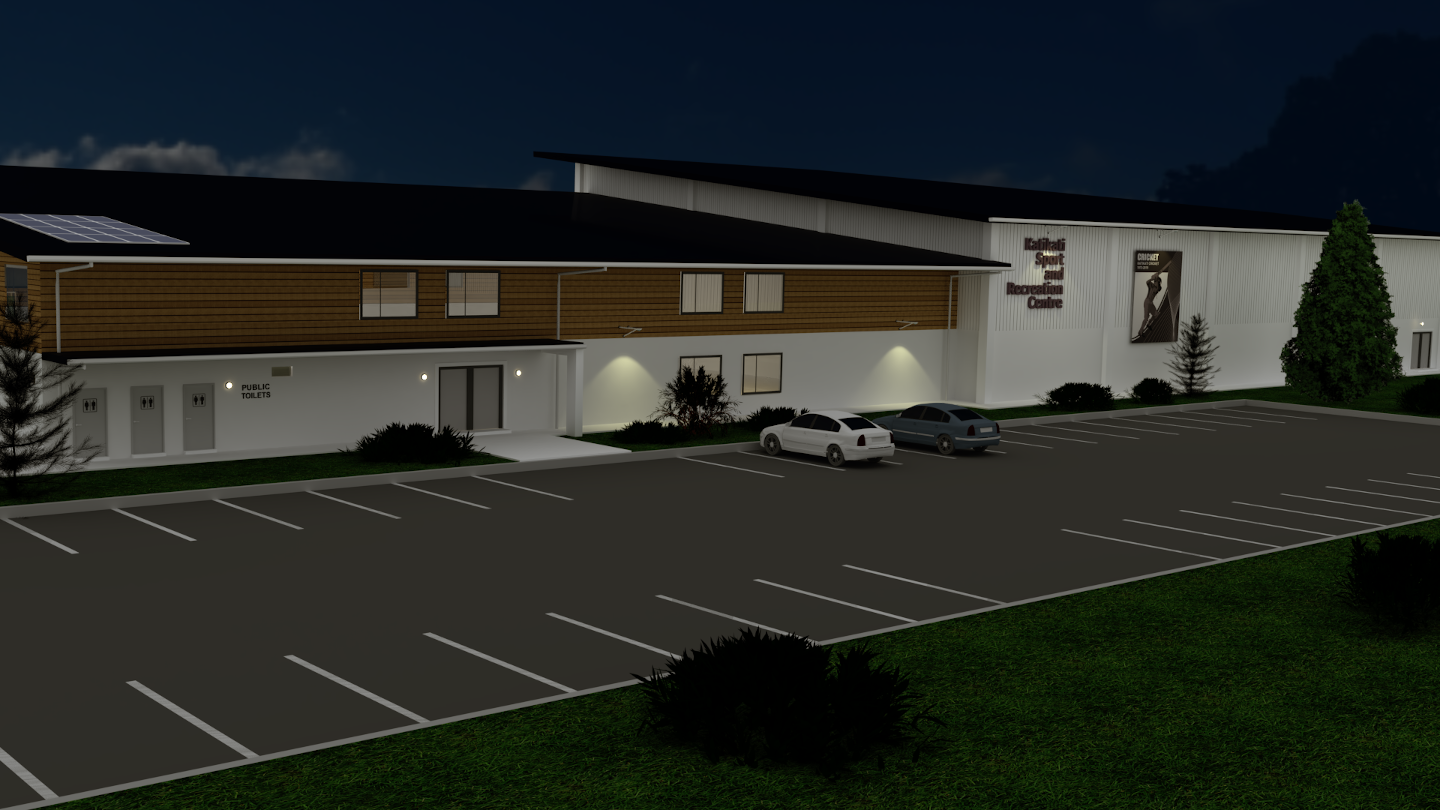

Sporting center for Katikati.
- a 3D model for a sporting center for Katikati.A 3D model for a sporting center for Katikati, night study. Model built in Rhino3D, rendered in Blender.
Sporting center for Katikati
- a 3D model for a sporting center for Katikati.A 3D model for a sporting center for Katikati, backview study, day time. Model built in Rhino3D, rendered in Blender.
Sporting center for Katikati
- a 3D model for a sporting center for Katikati.A 3D model for a sporting center for Katikati, front study, day time. Model built in Rhino3D, rendered in Blender.

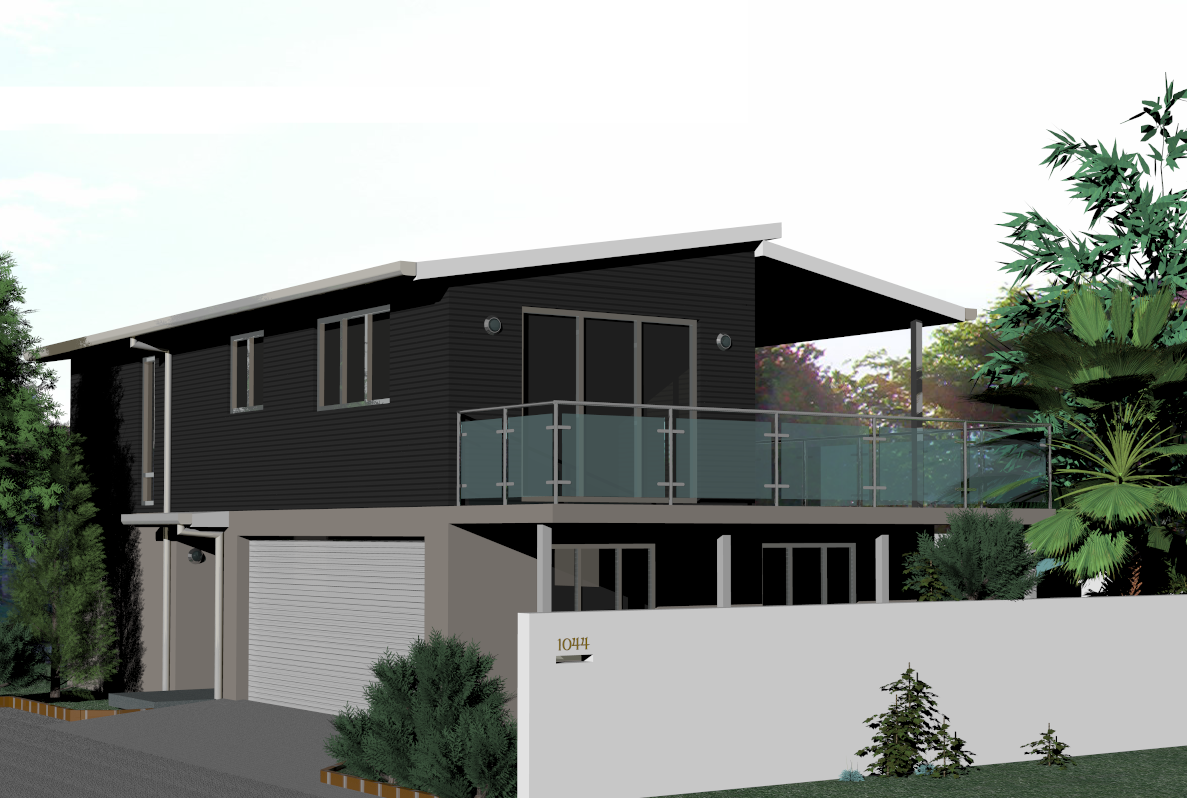

House in Papamoa
- a 3D model of a House in Papamoa.A 3D presentation for a house in Papamoa. Model built in ArchiCAD, rendered in Flamingo.
Poster
- Main Boat Show poster for Kelsall Catamarans.A poster for Boat Shows for Kelsall Catamarans. Inkscape.
